BarChart

Draws a bar chart.

Examples​

Live example

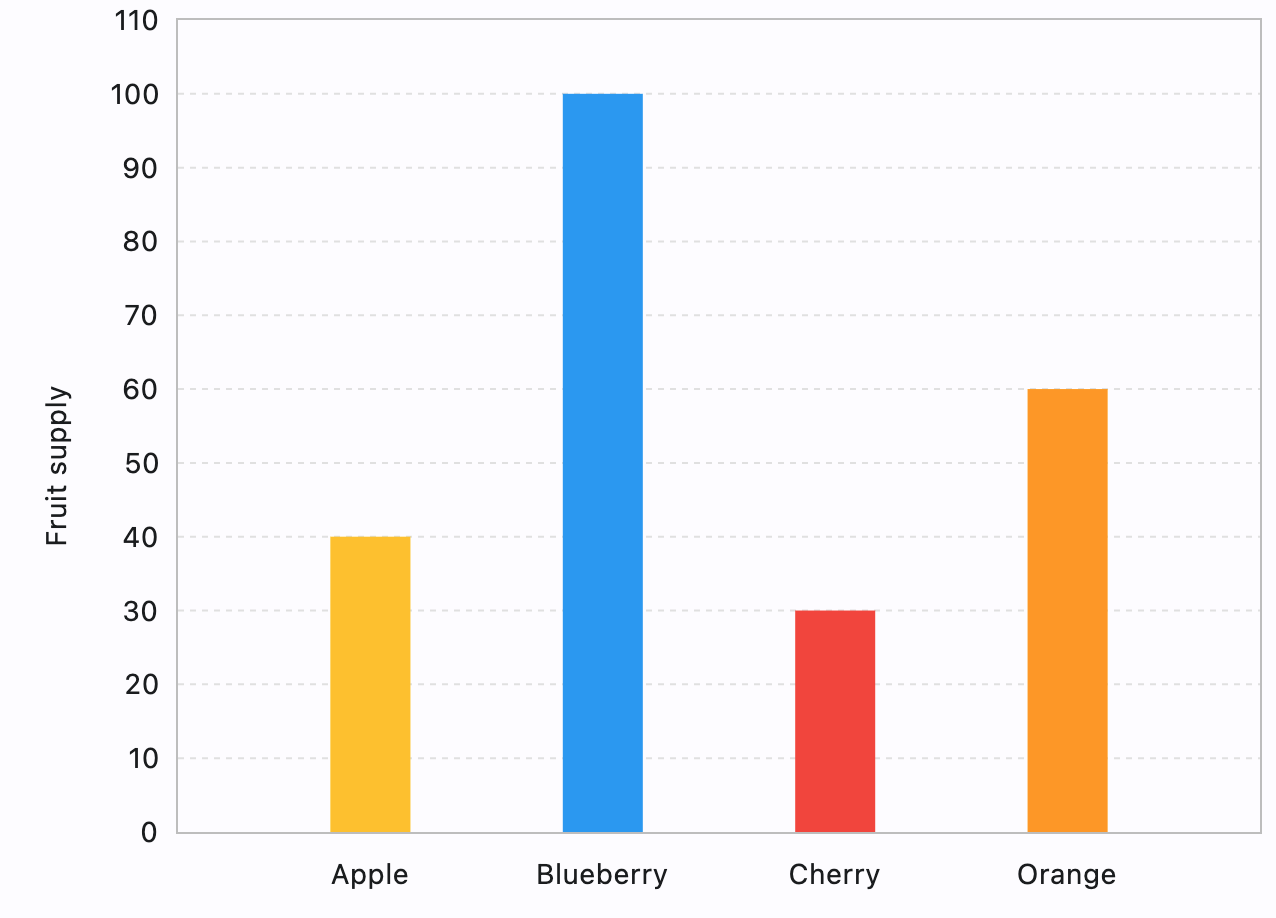

BarChart 1​

python/controls/charts/bar-chart/barchart-example.py
loading...

BarChart 2​

python/controls/charts/bar-chart/barchart-with-event.py
loading...

BarChart properties​

animate​

Controls chart implicit animation.

Value is of AnimationValue type.

bar_groups​

The list of BarChartGroup to draw.

baseline_y​

Baseline value for Y axis.

Defaults to 0.

bgcolor​

Background color of the chart.

border​

The border around the chart.

Value is of type Border.

bottom_axis​

Configures the appearance of the bottom axis, its title and labels. The value is the instance of ChartAxis class.

groups_space​

A gap between bar groups.

horizontal_grid_lines​

Controls drawing of chart's horizontal lines.

Value is of type ChartGridLines.

interactive​

Enables automatic tooltips when hovering chart bars.

left_axis​

Configures the appearance of the left axis, its title and labels.

Value is of type ChartAxis.

max_y​

Configures the maximum displayed value for Y axis.

min_y​

Configures the minimum displayed value for Y axis.

right_axis​

Configures the appearance of the right axis, its title and labels. The value is the instance of ChartAxis class.

top_axis​

Configures the appearance of the top axis, its title and labels. The value is the instance of ChartAxis class.

tooltip_bgcolor​

Background color of tooltips.

tooltip_border_side​

The tooltip border side.

tooltip_direction​

Controls showing tooltip on top or bottom, default is auto.

tooltip_fit_inside_horizontally​

Forces the tooltip to shift horizontally inside the chart, if overflow happens.

Value is of type bool.

tooltip_fit_inside_vertically​

Forces the tooltip to shift vertically inside the chart, if overflow happens.

Value is of type bool.

tooltip_horizontal_offset​

Applies horizontal offset for showing tooltip.

Defaults to 0.

tooltip_margin​

Applies a bottom margin for showing tooltip on top of rods.

tooltip_max_content_width​

Restricts the tooltip's width.

tooltip_padding​

Applies a padding for showing contents inside the tooltip.

tooltip_rounded_radius​

Sets a rounded radius for the tooltip.

tooltip_rotate_angle​

The rotation angle of the tooltip.

vertical_grid_lines​

Controls drawing of chart's vertical lines.

Value is of type ChartGridLines.

BarChart events​

on_chart_event​

Fires when a bar is hovered or clicked.

Event handler receives an instance of BarChartEvent.
